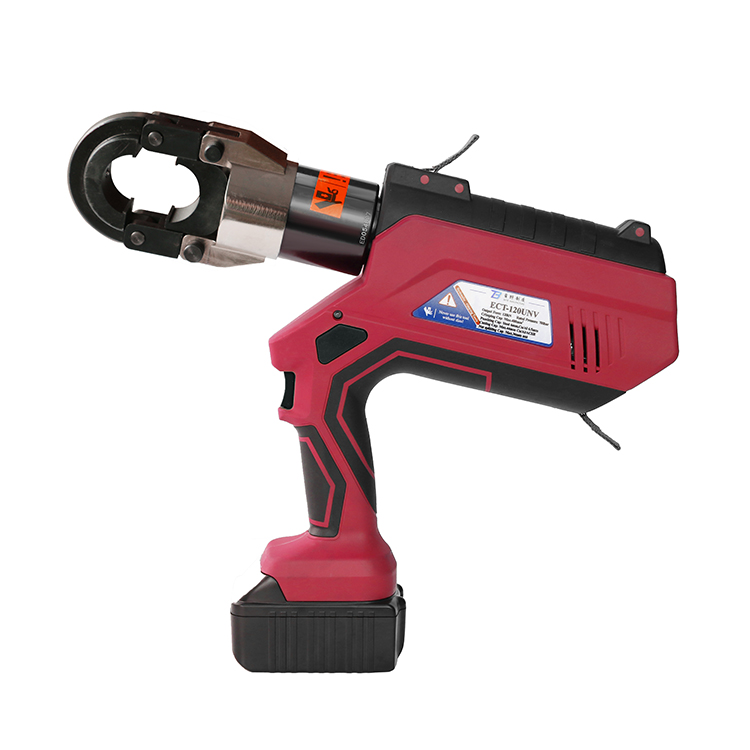

Technical Data:
|
Model
|
ECT-120UNV
|
|
Crimping Force
|
12T
|
|
Rated Pressure
|
700bar
|
|
Crimping Capacity
|
Cu400mm2 / Al300mm2
|
|
Punching Capacity |
Angle Steel: 6mm thickness
|
|
Busbar Cu/Al: Max. 6.5mm thickness
|
|
|
Cutting Capacity
|
Max. 44mm Cu/Al/ACSR
|
|
Nut Splitting Capacity
|
Max. 36mm Nut
|
|

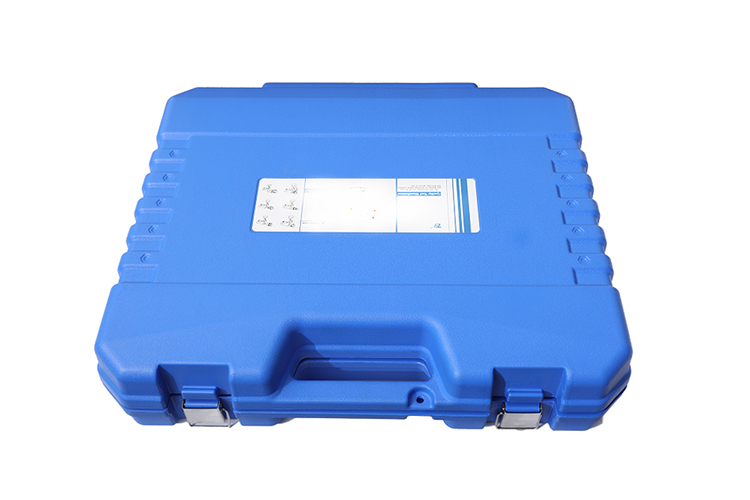

Packing
|
Plastic Case
|
|
Standard Dies |
Crimping dies Cu50-400 mm2, punching dies 10.5, 13.5, 17.5, nut splitting blade,
blade holder, cutting head
|

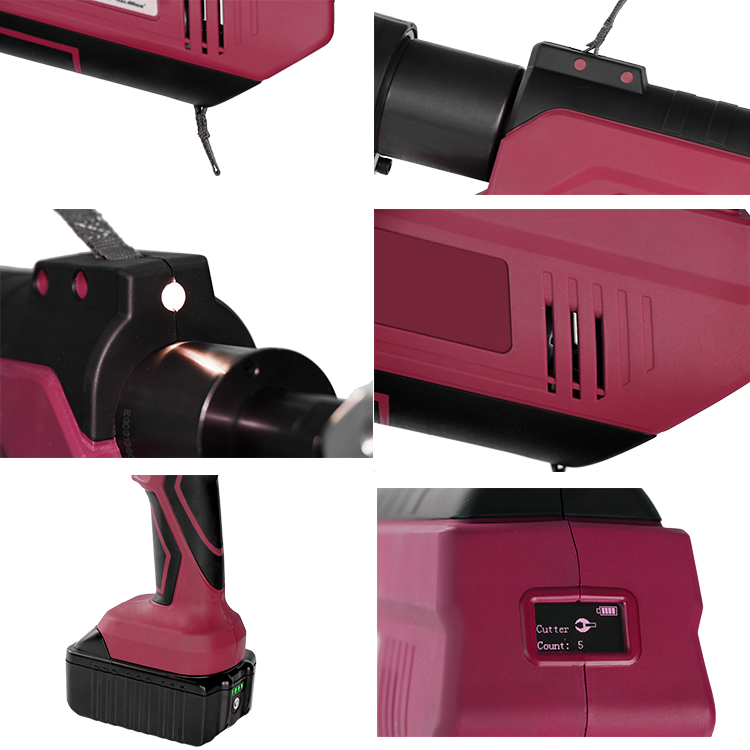

Features:
1. One tool for multifunction, crimping, cutting, punching and nut splitting
2. Flip top style for easy access to the fitting
3. Crimping head rotates 360°
4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power display lithium battery with fast charger
6. Equipped with LED light for dark place
7.External LCD screen, easy to read the number of crimping
8.Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance
1. One tool for multifunction, crimping, cutting, punching and nut splitting
2. Flip top style for easy access to the fitting
3. Crimping head rotates 360°
4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power display lithium battery with fast charger
6. Equipped with LED light for dark place
7.External LCD screen, easy to read the number of crimping
8.Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance
