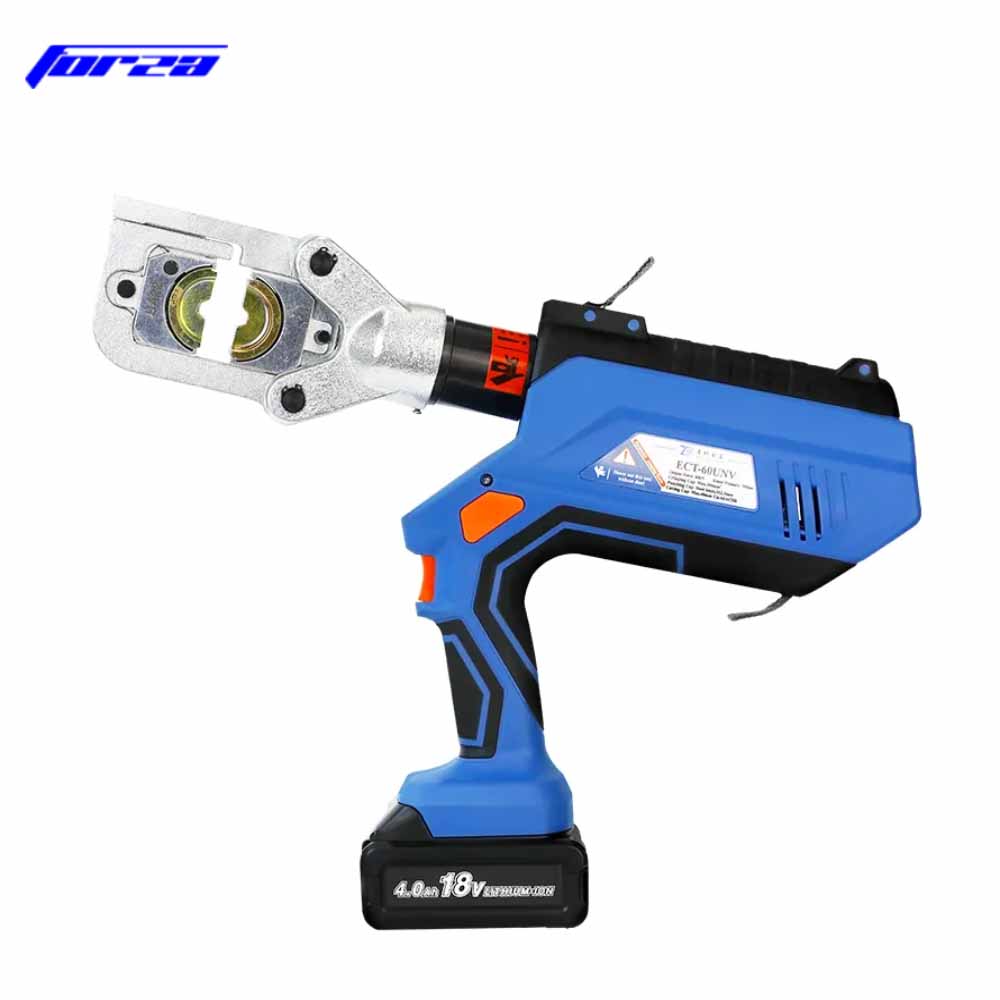

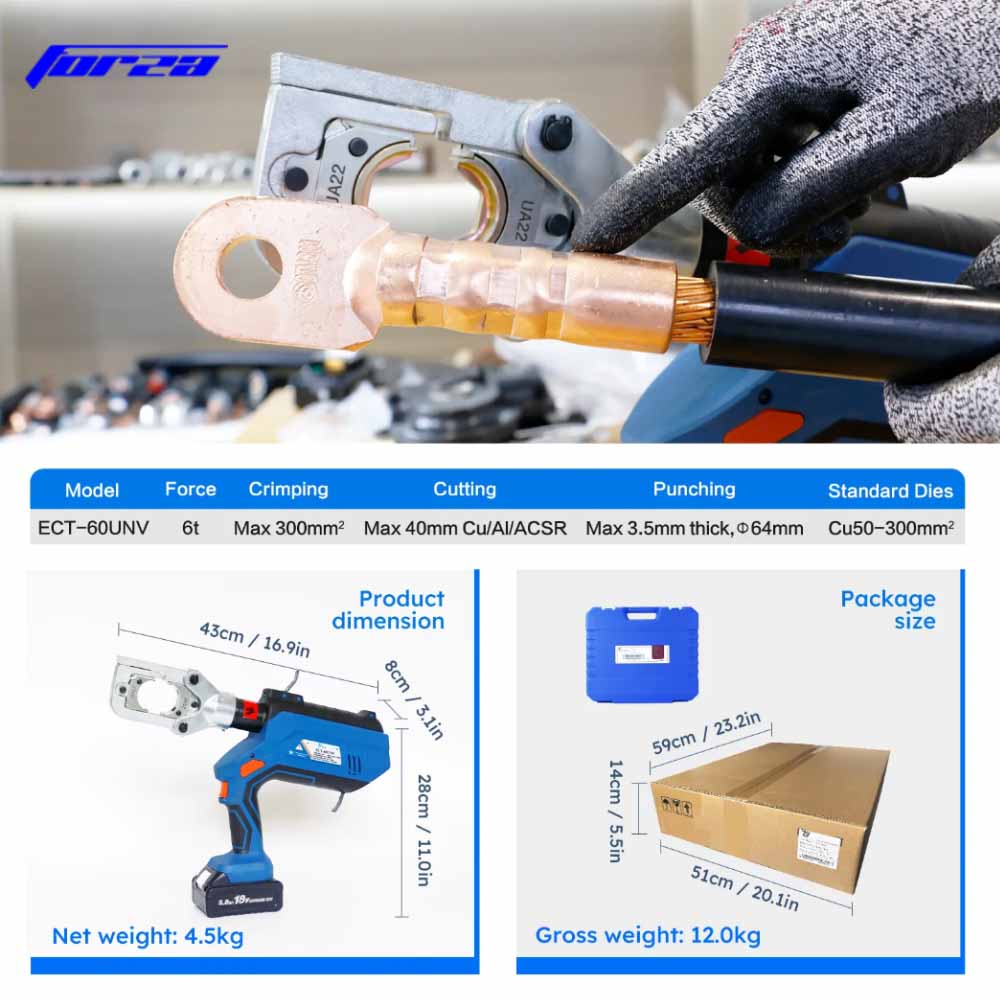

Model
|
ECT-60UNV
|
|
Crimping Force
|
6T
|
|
Rated Pressure
|
700bar
|
|
Crimping Capacity
|
Max 300mm2
|
|
Punching Capacity
|
Plain Steel: 3.5mm thick, Ø64mm
|
|
Stainless Steel: 2.5mm thick, Ø64mm
|
|
|
Cutting Capacity
|
Max. 40mm Cu/Al/ACSR
|
|
Packing
|
Plastic Case
|
|

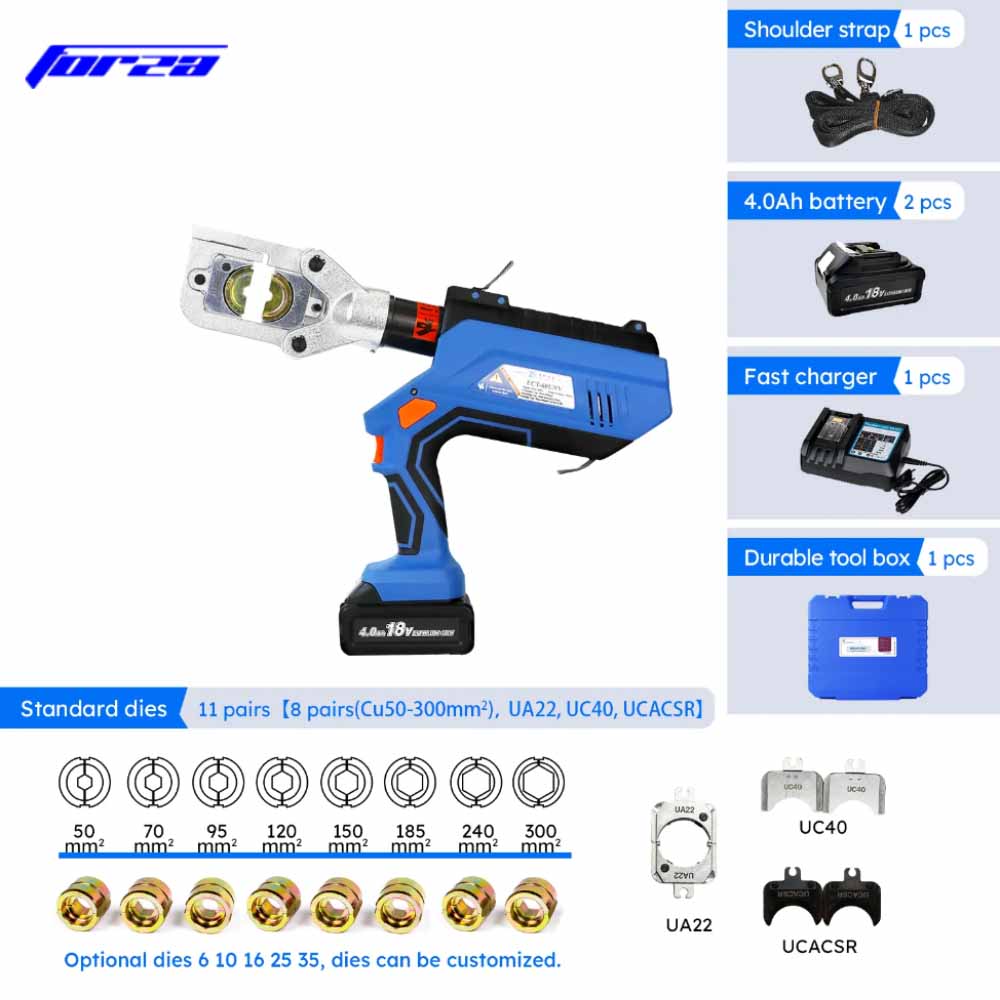

Standard Dies |
Die adapter, Cu50-300mm2
|
|
Cutting bade: UCACSR and UC40
|
Features:
1. One tool for multifunction, crimping, cutting and sheet steel punching
2. Flip top style for easy access to the fitting
3. Crimping head rotates 360°
4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power display lithium battery with fast charger
6. Equipped with LED light for dark place
7.External LCD screen, easy to read the number of crimping
8.Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance
1. One tool for multifunction, crimping, cutting and sheet steel punching
2. Flip top style for easy access to the fitting
3. Crimping head rotates 360°
4. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information
5. High-capacity 18V power display lithium battery with fast charger
6. Equipped with LED light for dark place
7.External LCD screen, easy to read the number of crimping
8.Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance
